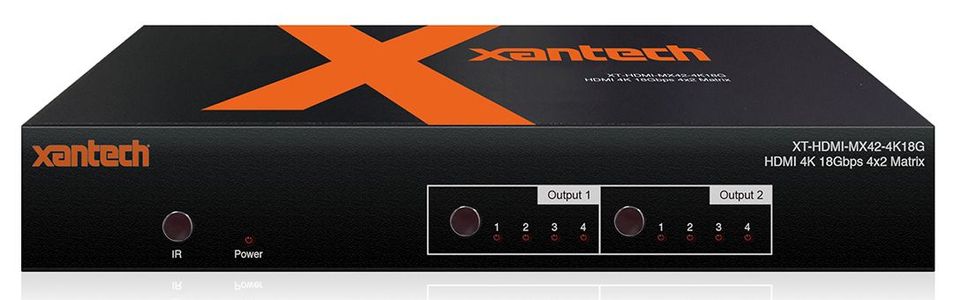

The XT-HDMI-MX42-4K18G 4K HDMI matrix distributes four HDMI sources to two displays, transmitting all HDMI resolutions up to 4K 60Hz 4:4:4.Read More
The XT-HDMI-MX42-4K18G 4K HDMI matrix features HDMI 2.0 chipsets with HDCP 2.2 support, allowing distribution of four HDMI sources to two displays. The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4. The 4-Way matrix also includes advanced features such as RS-232 for control and configuration of the matrix, bi-directional IR routing, audio breakout and EDID management.
Important Note: This product uses Xantech’s legendary 12v IR signal to ensure reliability. We recommend using any of Xantech’s IR receivers and emitters. This product is also compatible with all ELAN controller IR outputs.
HDCP2.2 is the next generation of copy protection required to allow the playback of the latest 4K source media.
A 4K display has four times the number of pixels than your current Full HD 1080p display so the clarity of the image is much more superior and detailed.
1x XT-HDMI-MX42-4K18G
1x 12V/2A DC Power Supply
1x Remote Control
1x Mounting Kit
Supports 4K UHD video (up to 4K @60Hz 4:4:4)
1x Quick Reference Guide
Supports all known HDMI audio formats including Dolby TrueHD®, Dolby Atmos®, Dolby Digital Plus® and DTS-HD® Master Audio Transmission
Bi-directional IR from all input and output locations
HDMI audio breakout via analog L/R audio and coaxial digital outputs concurrently*
Features 4x HDMI inputs which can be independently routed to 2x HDMI outputs
Advanced EDID management
HDCP 2.2 Compliant
* Does not down-mix Dolby / DTS / multi-channel audio signal.
General Specs | |
| Manufacturer Warranty | 2 Year Full |
Shipping Information | |
| Length | 13.2 (Inches) |
| Width | 8.3 (Inches) |
| Height | 4.8 (Inches) |
| Weight | 3.1 (Lbs) |
| Unit of Measure | Each |
General | |
| Video Input Connectors | 4x HDMI Type A, 19-pin, female |
| Video Output Connectors | 2x HDMI Type A, 19-pin, female |
| Audio Output Connectors | 2x RCA (SPDIF), 2x 3.5mm stereo jack (L/R) |
| RS-232 Serial Port | 1x DB-9, female |
| IR Input Ports | 3x 3.5mm stereo jack |
| IR Output Ports | 4x 3.5mm mono jack |
| EDID | 4-Pin DIP switch |
| Dimensions (W x D x H) | 255 x 115 x 47mm (with connections) |
| Dimensions (W x D x H) | 255 x 104 x 40mm (without connections) |
| Ind. Weight | 1.3kg (excluding accessories) |
| Carton / Box Dimensions (W x D x H) | 335 x 200 x 120 mm |
| Shipping Weight | 1.5kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Power Supply | 12V / 2A DC power supply, screw type connector |
