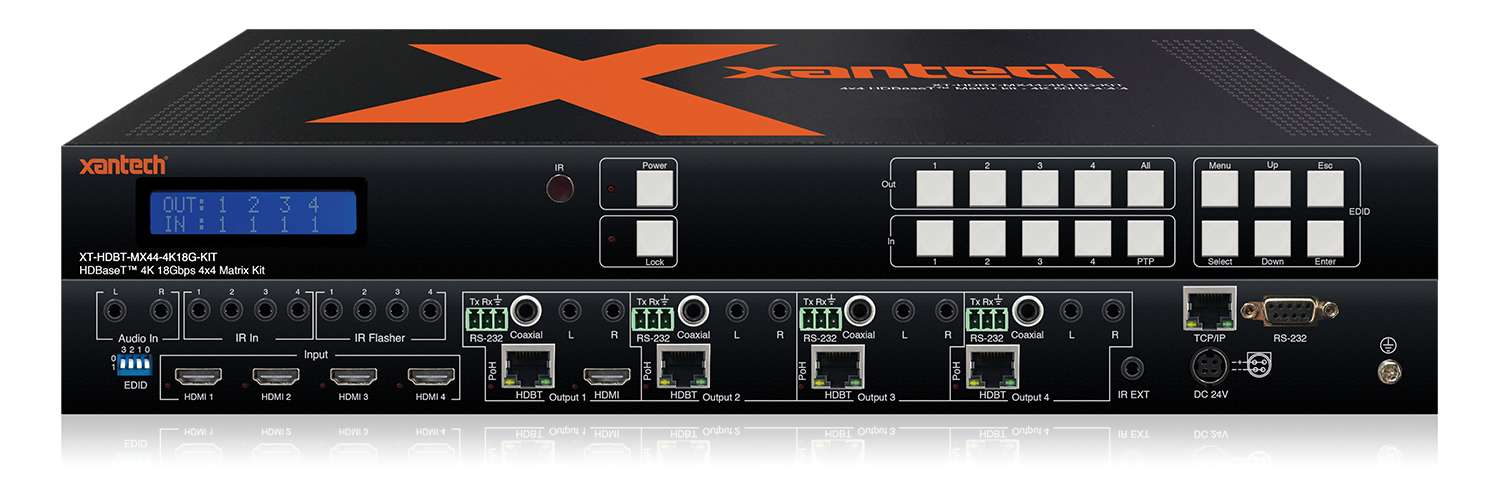

Xantech® HDBaseT 4K 18Gbps 4x4 Matrix Kit

Xantech

Model #:

XT-HDBT-MX44-4K18G-KIT

Model #: XT-HDBT-MX44-4K18G-KIT
403173
Xantech
$5,233.00

At a Glance

The XT-HDBT-MX44-4K18G-KIT 4x4 HDBaseT™ Matrix kit offers unprecedented performance and value for the custom installation market. The XT-HDBT-MX44-4K18G-KIT is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix package utilizing CSC technology to deliver HDMI, Bi-directional IR, RS-232 and PoH (PoE) up to lengths of 70m over a single CAT cable. The Matrix also provides advanced features including simultaneous HDBaseT/HDMI on output 1, audio breakout with pre-amp variable line-level control and a web browser interface module for control and configuration of the matrix. The XT-HDBT-MX44-4K18G-KIT is supplied with 4x XT-HDBT-EX70-4K18G-RX receivers.Read More

Available in Store Only
$5,233.00

Get to know this product.

Product Overview

Product Overview

Advanced HDBaseT technology offering uncompressed video and audio with zero latency

Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR

Features 4x HDMI inputs which can be independently routed to 4x HDBaseT outputs

Output 1 features simultaneous HDMI and HDBaseT output

Supports 4K 60Hz 4:4:4 UHD video up to 40m

Extends HDMI 1080p video up to 70m

HDMI re-clocking on the XT-HDBT-EX70-4K18G-RX HDBaseT Receiver to help solve HDMI HDCP, compatibility

Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, DTS:X, DTSHD Master Audio transmission

HDMI audio breakout to associated analog L/R audio outputs with pre-amp line level control

Analog audio input can be embedded onto any HDMI input

Web interface module for control and configuration of Matrix

Supports bi-directional IR and RS-232 on all HDBaseT outputs

Control via front panel, IR, RS-232, and TCP/IP

Supports PoH (Power over HDBaseT) to power compatible HDBaseT receivers

3rd party drivers available for all major home control brands

1U design for 19” rack mount integration - mounting kit included

Advanced EDID management

HDCP 2.2 compliant

Specifications

Shipping Information

Length19.48 (Inches)
Width11.81 (Inches)
Height6.1 (Inches)
Weight17.64 (Lbs)
Unit of MeasureEach

XT-HDBT-MX44-4K18G

Video Input Connectors4x HDMI Type A, 19-pin, female
Video Output Connectors1x HDMI Type A, 19-pin, female & 4x HDBaseT™ RJ45 connector
Audio Output Connectors 4x RCA (S/PDIF) & 4x RCA (Analog L/R)
RS-232 Serial Port1x DB-9, female & 4x 3 pin Phoenix (pass through)
EDID4-Pin DIP switch
IR Input Ports5x 12V 3.5mm stereo jack
IR Output Ports4x 12V 3.5mm stereo jack
TCP/IP Control1x RJ45, female
Dimensions (W x H x D)440mm x 235mm x 44mm (without connections)
Dimensions (W x H x D)440mm x 245mm x 52mm (with connections)
Power Supply 24V / 3.5A DC

XT-HDBT-EX70-4K18G-RX

Video Input Connectors1x HDBaseT™ RJ45 connector
Video Output Connectors1x HDMI Type A, 19-pin female
IR Input ports1x 12V 3.5mm stereo jack
IR Output ports1x 12V 3.5mm mono jack
RS-232 Serial Port 1x DB-9, female
Dimensions (W x H x D)113mm x 22mm x 124mm (without connections)
Dimensions (W x H x D)113mm x 22mm x 138mm (with connections)
Carton / Box Dimensions (W x D x H) 495 x 300 x 155 mm
Shipping Weight 8.0kg
Operating Temperature32°F to 104°F (0°C to 40°C)
Storage Temperature-4°F to 140°F (-20°C to 60°C)
