Xantech® Digital to Analog Converter (DAC) with Digital Audio Converter

Model #: XT-DAC-12
402506
Xantech
At a Glance
The XT-DAC-12 is converts either coaxial or optical signals from a digital signal to analog stereo audio, and converts optical audio into a coaxial digital output.
Available in Store Only
$99,999.00Save $NaN

Get to know this product.

The XT-DAC-12 is designed to convert either coaxial or optical signals from a digital signal to analog stereo audio. The XT-DAC-12 also includes a digital converter which converts optical audio into a coaxial digital output. This provides the perfect cost effective solution when connecting the digital audio output from a TV display to an analog input on an amplifier. The XT-DAC-12 utilizes 192kHz sample rates for enhanced sound reproduction.

  • Converts SPDIF optical or coaxial digital PCM audio to analog stereo left/right RCA output
  • Supports sample rates 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz, up to 24-bit resolution
  • Outputs both analog left/right audio and coaxial digital audio concurrently
  • Converts optical digital input to coaxial digital output
  • Auto-detects digital connection in use
  • Optical digital input has priority over coaxial digital input
  • Ultra low jitter and high fidelity design
  • Plug-and-play
  • Small compact size
  • * Does not down-mix Dolby / DTS / multi-channel audio signal.
Useful Documents
Specifications

Shipping Information

Length6.5 (Inches)
Width4.5 (Inches)
Height3.4 (Inches)
Weight0.75 (Lbs)
Unit of MeasureEach

Transmitter

Audio Input Connectors1x Optical (SPDIF) & 1x RCA (SPDIF)
Output Connectors1x RJ45

Receiver

Audio Input Connectors1x Optical digital & 1x Coaxial RCA (SPDIF)

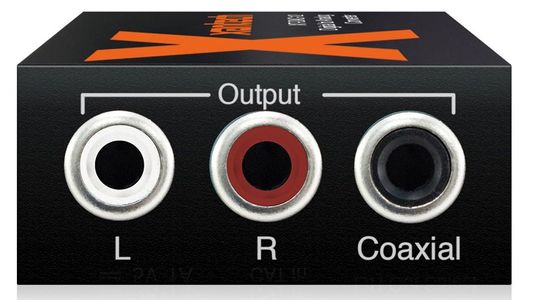

Audio Output Connectors2x Analog stereo left/right & 1x Coaxial RCA (SPDIF)
Dimensions (W x H x D)50mm x 26mm x 42mm
Dimensions including connections (W x H x D)68mm x 26mm x 42mm
Shipping Weight0.4kg
Operating Temperature32°F to 104°F (0°C to 40°C)
Storage Temperature-4°F to 140°F (-20°C to 60°C)
Power Supply5V/1A DC

Misc. Specs

Manufacturer Warranty2 Year Full
