Xantech® Digital Audio Converter

Model #: XT-DIG-11
402691
Xantech
At a Glance
The XT-DIG-11 converts coaxial or optical digital audio signals from one signal type to another for simultaneous distribution to multiple locations. Supports 192kHz sample rates.
Available in Store Only
$99,999.00Save $NaN

Get to know this product.

The XT-DIG-11 is designed to convert coaxial or optical digital audio signals from one signal type to another.The outputs are simultaneous so audio can be distributed to multiple locations.The XT-DIG-11 supports 192kHz sample rates for enhanced sound reproduction.This provides the perfect cost effective solution when connecting a source with only optical audio outputs to a device that has only coaxial digital inputs or vice versa.

  • Converts optical audio to coaxial digital audio or vise versa
  • Both optical and coaxial digital outputs work concurrently regardless of input type selected
  • Supports sample rates 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz, up to 24-bit resolution
  • Plug-and-play
  • Small compact size
Useful Documents
Specifications

Shipping Information

Length6.4 (Inches)
Width4.4 (Inches)
Height3.4 (Inches)
Weight0.7 (Lbs)
Unit of MeasureEach

General

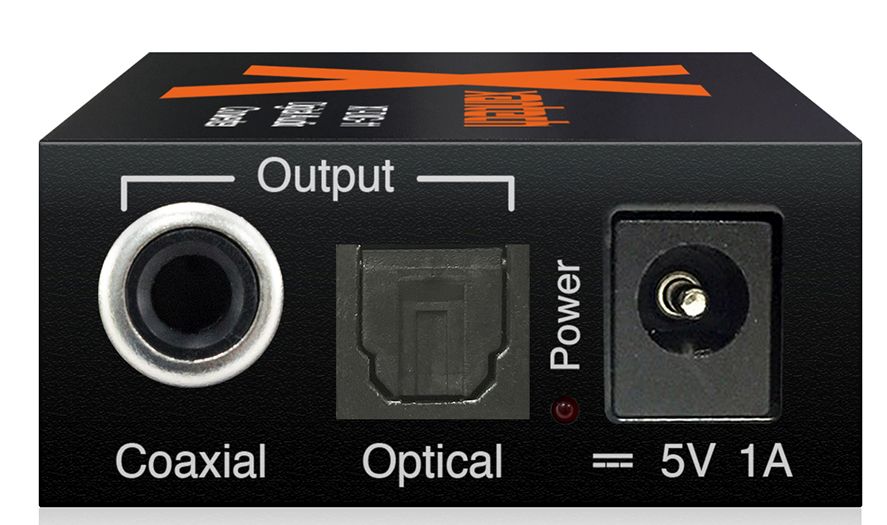

Audio Input Connectors1x Optical (SPDIF) & 1x Coax RCA (SPDIF)
Output Connectors1x Optical (SPDIF) & 1x Coax RCA (SPDIF)
Product Dimensions (WxDxH)65 x 60 x 25mm (with mounting kit & connections)
Product Dimensions (WxDxH)50 x 45 x 25mm (without mounting kit & connections)
Product Weight0.1kg (excluding accessories)
Carton / Box Dimensions (WxDxH)165 x 110 x 85mm
Shipping Weight0.3kg
Operating Temperature32°F to 104°F (0°C to 40°C)
Storage Temperature-4°F to 140°F (-20°C to 60°C)
Power Supply5V / 1A DC, barrel type connector

Misc. Specs

Manufacturer Warranty2 Year Full
