Xantech® 70M HDBaseT 4K Receiver

Model #: XT-HDBT-EX70-4K-RX
At a Glance

The Xantech line of HDBaseT products offers market leading features at an outstanding value. The XT-HDBT-EX70-4K-RX is an industry leading 4K HDBaseT solution delivering HDMI with HDCP 2.2 support, bidirectional IR and PoH (PoE) up to lengths of 40m at 4K (70m at 1080p) over a single CAT cable.

Available in Store Only
$99,999.00Save $NaN

Get to know this product.

  • HDCP compliant
  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Extends HDMI 1080P up to a distance of 70m over a single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, DTS:X, DTSHD Master Audio transmission
  • Supportsbi-directional PoH (Power over HDBaseT) to power extender from either Matrix, transmitter or receiver end
  • Bi-directional IR from all input and output locations

Shipping Information

Length5.6 (Inches)
Width4.6 (Inches)
Height1.4 (Inches)
Weight0.7 (Lbs)
Unit of MeasureEach

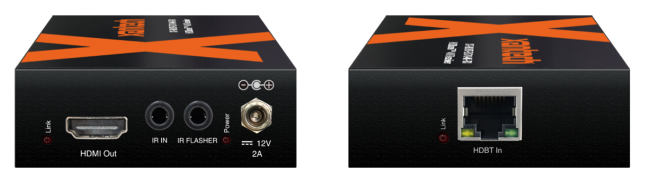

Video Input1x HDBaseT™ RJ45 connector
Video Output1x HDMI Type A, 19-pin female
IR Input Ports1x 12V 3.5mm stereo jack
IR Output Ports1x 12V 3.5mm mono jack
Dimensions (W x H x D)110mm x 27mm x 108mm (without connections)
Dimensions (W x H x D)110mm x 27mm x 122mm (with connections)
Carton / Box Dimensions (W x D x H) 142 x 117 x 37 mm
Shipping Weight 0.4kg
Operating Temperature32°F to 104°F (0°C to 40°C)
Storage Temperature-4°F to 140°F (-20°C to 60°C)
Mounting kit includedYes
WarningProposition 65 Warning for California Residents
