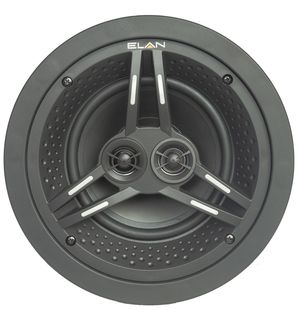

ELAN® 400 Series 6.5" DVC/SST In-Ceiling Speaker (Each)

Model #: EL-400-ICDVC-6

At a Glance

When background music is what's needed, the EL-400-ICDVC-6 delivers. Featuring top-shelf components including 1/2" mylar tweeters and a polypropylene cone woofer, the 400 Series is the perfect solution for audio throughout the home while keeping an eye on the budget. The dual input / single stereo design delivers a complete experience from a single speaker without the need for a stereo pair

WarningProposition 65 Warning for California Residents
ELAN® 400 Series 6.5" DVC/SST In-Ceiling Speaker (Each)

General Specs

Frequency Response40Hz-20kHz
Manufacturer Warranty2 Year
RMS Power Handling (Watts)100
ColorBlack
Impedance8 ohms
Maximum Power Handling (Watts)100
Number of Speakers1
Sensitivity89
Speaker TypeIn-Ceiling Speakers
Depth (in.)3.8
Height (in.)9.63
Width (in.)9.63
Woofer Size6.5"

General

Woofer Size6-1/2" / 160mm
Length10.6 (Inches)
Width10.5 (Inches)
Height5.8 (Inches)
Weight7.64 (Lbs)
Unit of MeasureEach
Woofer ConstructionPolypropylene Cone
TweeterDual 1/2" / 13mm Fixed Mylar Dome
Frequency Response40Hz-20kHz
Impedance8 (Ohms)
Power Handling100 (Watts)
Sensitivity89 (dB)
TimbreTimbre-Matched to all 400 Series Speakers
Dimensions9-5/8" / 237mm Diameter x 3.8" / 97 mm Depth
Hole Cutout Dimensions8-1/4" / 210 mm Diameter
Mounting Depth3.7" / 94mm
WarningWARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

ELAN® 400 Series 6.5" DVC/SST In-Ceiling Speaker (Each)

Model #: EL-400-ICDVC-6
396668
Model #: EL-400-ICDVC-6
Elan
$99,999.00

Available in Store Only

At a Glance

When background music is what's needed, the EL-400-ICDVC-6 delivers. Featuring top-shelf components including 1/2" mylar tweeters and a polypropylene cone woofer, the 400 Series is the perfect solution for audio throughout the home while keeping an eye on the budget. The dual input / single stereo design delivers a complete experience from a single speaker without the need for a stereo pair

Get to know this product.

Don't miss a Beat

The speaker's Left and Right inputs allow you deliver a complete experience out of one speaker without the need of a stereo pair

Room Filling Sound

Low Crossover points and a woofer that's mounted as close to the surface as possible delivers the widest dispersion and best sound quality possible

Thin is In

A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, it fits universally into almost any décor

Easy-Grip Tweeter Bridge

We know you do it! Installing speakers above your head requires a sturdy grip point and the ELAN Tweeter bridge ensures you have one. We even protect the tweeter from accidental finger pokes

Dimpled Baffle Design

The dimpled baffle design eliminates annoying echoes and increases dispersion by reducing the focusing action of the concave baffle. The result is crystal-clear room filling sound

Secure Connection

All ELAN speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling

Lifetime Warranty

Feel confident that All ELAN Architectural speakers are backed by a limited lifetime warranty

Useful Documents
Specifications

General Specs

Frequency Response40Hz-20kHz
Manufacturer Warranty2 Year
RMS Power Handling (Watts)100
ColorBlack
Impedance8 ohms
Maximum Power Handling (Watts)100
Number of Speakers1
Sensitivity89
Speaker TypeIn-Ceiling Speakers
Depth (in.)3.8
Height (in.)9.63
Width (in.)9.63
Woofer Size6.5"

General

Woofer Size6-1/2" / 160mm
Length10.6 (Inches)
Width10.5 (Inches)
Height5.8 (Inches)
Weight7.64 (Lbs)
Unit of MeasureEach
Woofer ConstructionPolypropylene Cone
TweeterDual 1/2" / 13mm Fixed Mylar Dome
Frequency Response40Hz-20kHz
Impedance8 (Ohms)
Power Handling100 (Watts)
Sensitivity89 (dB)
TimbreTimbre-Matched to all 400 Series Speakers
Dimensions9-5/8" / 237mm Diameter x 3.8" / 97 mm Depth
Hole Cutout Dimensions8-1/4" / 210 mm Diameter
Mounting Depth3.7" / 94mm
