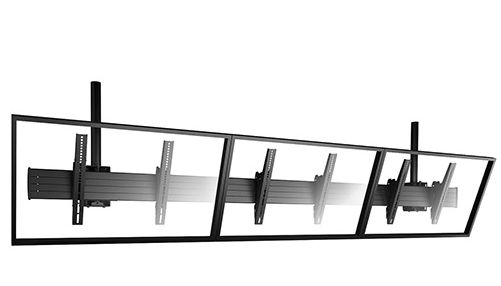

Chief® Professional AV Solutions Black FUSION™ Large Ceiling Mount
Model #: LCM3X1U
At a Glance
Chief's Fusion ceiling mounted solutions make it possible to construct menu boards in prominent locations where walls aren't available. Combine to easily create longer menu boards. Great for digital signage installations.
Proposition 65 Warning for California Residents
Misc. Specs
| Product Weight (lbs.) | 62 |
|---|---|
| Tilt | Yes |
| TV Size's up to (in.) | 55 |
| Weight Capacity (lbs.) | 125 |
| Mounting Location | Ceiling |
General
| Adjustments | 2" Micro adjustment at structural intersection points |
|---|---|
| Certifications | UL Listed, TAA Compliant |
| Color | Black |
| Mounting Pattern Compatibility (Universal Versions) | Any width x 100 - 400 mm |
| Notes | Weight capacity is per display |
| Number Of Monitors | 3 |
| Screen Array Configuration | 3 x 1 |
| Shipping Weight | 62 lbs (28.12 kg) |
| Solution Type | Universal |
| Tilt | + 5° , - 20° |
| Typical Screen Sizes | 40 - 55" (up to 65" with FCAX extension brackets) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Orientation | Landscape |
Chief® Professional AV Solutions Black FUSION™ Large Ceiling Mount
Model #: LCM3X1U
Available in Store Only
At a Glance
Chief's Fusion ceiling mounted solutions make it possible to construct menu boards in prominent locations where walls aren't available. Combine to easily create longer menu boards. Great for digital signage installations.
People also viewed:
Chief® Professional AV Solutions Black FUSION™ Large Ceiling Mount
Model #: LCM3X1UPAvailable in Store Only
Chief® Professional AV Solutions Black Heavy Duty Custom Flat Panel Wall Mount
Model #: PSMH2482Available in Store Only
Get to know this product.
Screen array configuration: screens wide x screens high.
Confirm screen compatibility with MountFinder™
Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.
Single horizontal extrusion keeps screens aligned
Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees
Tool-free screen engagement
Secure displays with optional pad-lock security
Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65
CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately
Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
See CPA ceiling plates and CPA columns for pin connection compatibility
Recommended ceiling plates for multi-display ceiling mounts (PDF)
TAA Compliant
