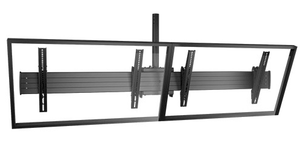

Chief® Professional AV Solutions Black FUSION™ Large Ceiling Mount

Model #: LCM2X1U

At a Glance

Chief's Fusion ceiling mounted solutions make it possible to construct menu boards in prominent locations where walls aren't available. Combine to easily create longer menu boards. Great for digital signage installations.

WarningProposition 65 Warning for California Residents
Chief® Professional AV Solutions Black FUSION™ Large Ceiling Mount

General Specs

Product Weight (lbs.)47
TiltYes
TV Size's up to (in.)55
Weight Capacity (lbs.)3485
Mounting LocationCeiling

General

CertificationsUL Listed
ColorBlack
Mounting Pattern Compatibility (Universal Versions)Any width x 100 - 400 mm
NotesWeight capacity is per display
Number Of Monitors2
Post-Installation Leveling Roll+ / - 3°
Screen Array Configuration2 x 1
Shipping Weight50 lbs (22.68 kg)
Solution TypeUniversal
Tilt+ 5° , - 20°
Typical Screen Sizes40 - 55" (up to 65" with FCAX extension brackets)
Weight Capacity125 lbs (56.7 kg)
OrientationLandscape

Chief® Professional AV Solutions Black FUSION™ Large Ceiling Mount

Model #: LCM2X1U
83263
Chief

See Price in Cart

At a Glance

Chief's Fusion ceiling mounted solutions make it possible to construct menu boards in prominent locations where walls aren't available. Combine to easily create longer menu boards. Great for digital signage installations.

Get to know this product.

Screen array configuration: screens wide x screens high.

Confirm screen compatibility with MountFinder™

Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.

Single drop for fast installation

Micro adjustable roll for perfect leveling +/- 3 degrees

360 degree swivel for optimal viewing angles

Single horizontal extrusion keeps screens aligned

Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees

Tool-free screen engagement

Secure displays with optional pad-lock security

Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65

CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately

Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems

See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility

See CPA ceiling plates and CPA columns for pin connection compatibility

TAA Compliant

Useful Documents
Specifications

General Specs

Product Weight (lbs.)47
TiltYes
TV Size's up to (in.)55
Weight Capacity (lbs.)3485
Mounting LocationCeiling

General

CertificationsUL Listed
ColorBlack
Mounting Pattern Compatibility (Universal Versions)Any width x 100 - 400 mm
NotesWeight capacity is per display
Number Of Monitors2
Post-Installation Leveling Roll+ / - 3°
Screen Array Configuration2 x 1
Shipping Weight50 lbs (22.68 kg)
Solution TypeUniversal
Tilt+ 5° , - 20°
Typical Screen Sizes40 - 55" (up to 65" with FCAX extension brackets)
Weight Capacity125 lbs (56.7 kg)
OrientationLandscape
