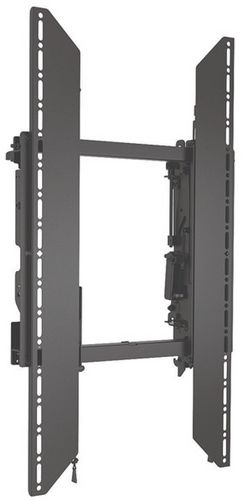

Chief® ConnexSys™ Black Video Wall Portrait Mounting System
Model #: LVSXUP
At a Glance
Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.
Proposition 65 Warning for California Residents
General Specs
| Depth (in.) | 32.5 |
|---|---|
| Width (in.) | 19.5 |
| Height (in.) | 4.1 |
| TV Size's up to (in.) | 80 |
| Weight Capacity (lbs.) | 3487 |
| Mounting Location | Wall |
General
| Certifications | UL Listed |
|---|---|
| Color | Black |
| Manual Height Adjustment | ± 1" |
| Maximum Extension | 13.4" (34.0 cm) |
| Minimum Depth | 4" |
| Mounting Pattern Compatibility (Universal Versions) | 200 x 100 - 800 x 400 mm |
| Number Of Monitors | 1 |
| Overall Dimensions (H x W x D) | 32.5 x 19.5 x 4.1" (826 x 496 x 104 mm) |
| Shipping Weight | 38 lbs (17.24 kg) |
| Solution Type | Universal |
| Tilt | + 4.0°, -2.5° |
| Typical Screen Sizes | 40 - 80" |
| Weight Capacity | 150 lbs (68 kg) |
| Orientation | Portrait |
Chief® ConnexSys™ Black Video Wall Portrait Mounting System
Model #: LVSXUP
127189
Chief
See Price in Cart
At a Glance
Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.
Get to know this product.
The LVSXUP ConnexSys Video Wall system portrait mount ships without rails. Installers can source strut locally to hang multiple mounts to one rail and reduce installation time.
Speed
Hang units on a single strut channel for quick row leveling
No need for horizontal spacers
Vertical measurement is simply the height of the display to the next rail
Compatible with most 1-5/8" sizes of channel strut
Reduces installation time - especially for XL and recessed configurations
Tool-free ClickConnect™ latching secures displays
PowerZone™ provides 6 points of adjustment in one easy-to-access location at the top of the mount
Alignment
PowerZone™ Adjustments
Height adjustment ±1" on each interface
Tilt adjustment at single pivot point, protects displays from twisting
Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations
Both sides adjust independently, compensating for imperfections in the wall
Walls can be out of alignment by up to 2" (horizontally)
3 levels of lateral adjustment
Mount left/right along rail
Interface left/right along mount
Lock in lateral guide for fine-tune adjustment using turn knobs, protecting screens from potential collisions
Serviceability
RapidDraw™ Display Release
Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4" for service
Protects displays by not requiring an aggressive push to release/pop-out
Releases only on demand, preventing accidental pop-outs
The 10' (304.8 cm) cord can be set up to pull for release from any 90 degree angle
Kickstand provides 20 degrees of bottom tilt access
Rigidity
Rigid frame keeps displays where you set them, even after extending for service
Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes
Miscellaneous
Security - pad lock ¼" shank diameter
Safety tested
Universal interface
Each mount comes out of the box with adjustments set in the exact same position
